Bellcouple is a sheath-core polyester filament developed from special conjugation technology. Two types of polymers with different melting pointsーregular polyester in the core and low-melting polyester in the sheathーcombine to offer various configurations by heat processing. Woven/knitted fabrics made of Bellcouple have superb heat sealability (to prevent slippage), shape retention and stiffness adjustability. Bellcouple is an innovative functional polyester filament, offering applications never before possible.

Features

Melts by Heat (Fusibility)

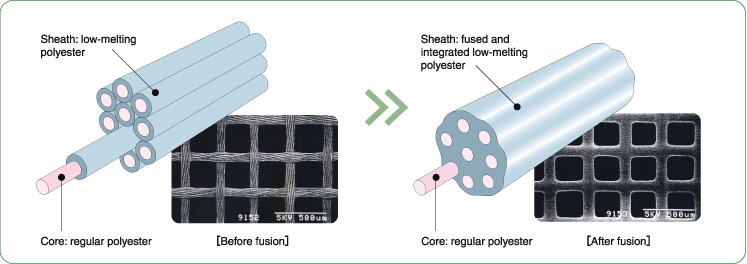

Heated at 160-190℃, the low-melting polyester in the sheath melts and bonds multifilaments into resilient monofilament yarns. Thanks to this feature, fabrics made of Bellcouple are fray- and slippage-resistant.

Varied Stiffness Possible (Stiffness Adjustability)

Adjusting the heat treatment temperature, as well as combining it with other fibers, allows the resultant fabrics to be set with a varying degree of stiffness. This eliminates the resin-finishing process that was previously required, reduces costs and lessens environmental pollution.

Minimal Deformation (Shape Retention)

The pleated or crushed surface is fixed by heat to retain its shape.

Excels in Durability

Being wash- and heat-resistant, Bellcouple fabrics withstand repeated washings and are free from performance deterioration or color fading by heat.

Forms to Any Shape (Heat Moldability)

Patterns and other shapes can easily be obtained by heat embossing. The excellent moldability of Bellcouple prevents embossed fabrics from deforming, and maintains their formed shapes semipermanently.

Applications

Filters

• Air conditioners * Dry/wet filters for waste water disposal * Laundry nets
• Filter bags for teas and other beverages * Sachets

Mesh fabrics

• Mesh fabrics for printing screens * Agricultural, fishery and construction materials
• Screen doors and windows * Embroidery cloths

Interlinings

• For garments * For curtains * For corsets

Reinforcement

• Spacer for reverse osmosis membrane

Pleated articles

• Lamp shades * Shape-retentive umbrellas * Pleated curtains * Tents

Padding

• For slippers * For shoes * For car seats * For upholstery * Mouse pads

Molded articles

• Bags * Speaker coverings * Hats * Brassiere cups

Stiffened articles

• Roll-up blinds * Wrapping materials

Others

• Substitutes for monofilaments * Substitutes for resin finishing
